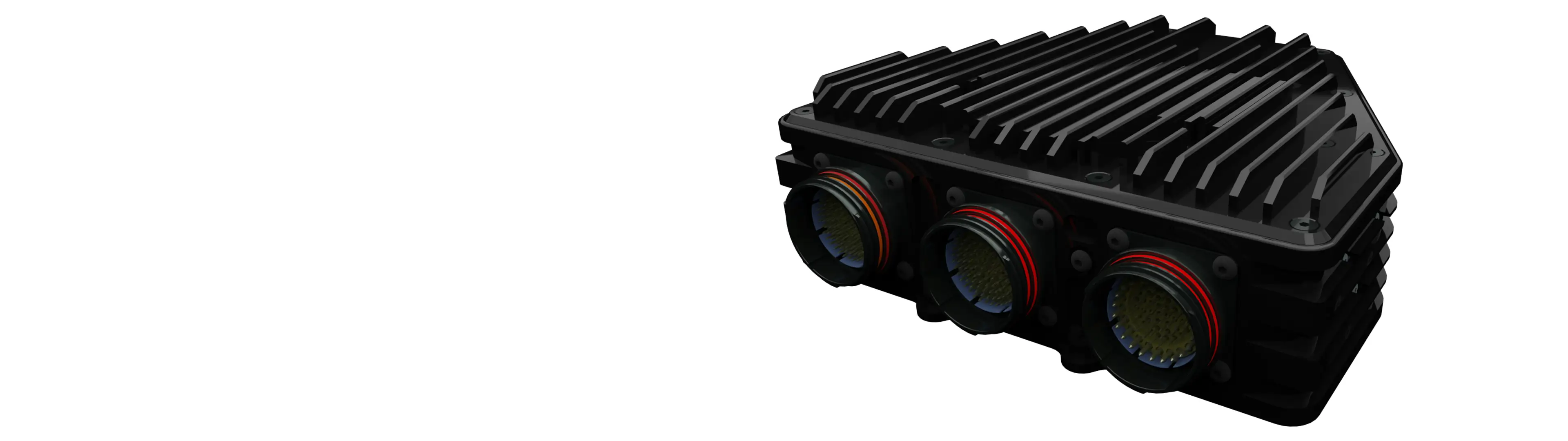

Electronic Control Unit TAG-320B

Application

• Control and monitoring of a racing car powertrain
• Up to 8-cylinder engines
• Throttle-by-wire
• Clutch-by-wire
• Semi-automatic gearbox
• Powerful onboard data logging and telemetry control
• Ethernet connection to application and data analysis tools (System Monitor and ATLAS)

Key features

• Application processing power 4000MIPS
• Extremely low latency, high frequency input sampling
• Digital filtering on all analogue inputs
• Data logging memory 8GB Flash

Electrical

• Supply voltage 7.5 to 16V DC
• Supply voltage not to exceed 17V continuous (the unit is protected against transients and reverse polarity)
• Supply current quiescent (ignition off) 4mA
• Supply current operating (no load on outputs) 3A typical at 13.8V
• Supply current operating (max load on supplies) 5A typical at 13.8V
• 32-bit Real Time Operating System
• Internal tri-axis accelerometer

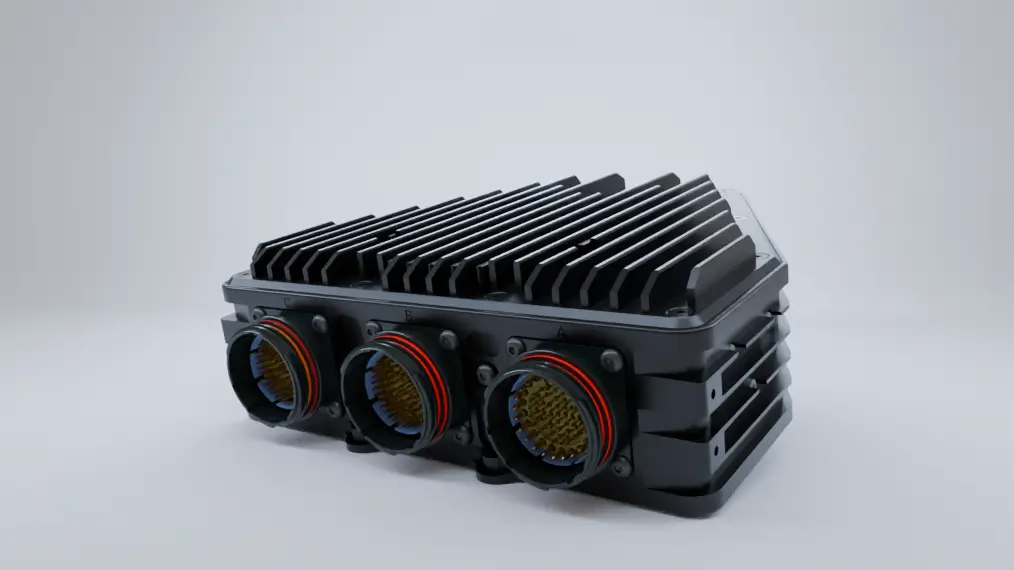

Mechanical

• Aluminium case (hard black anodised)
• Weight 1.35kg

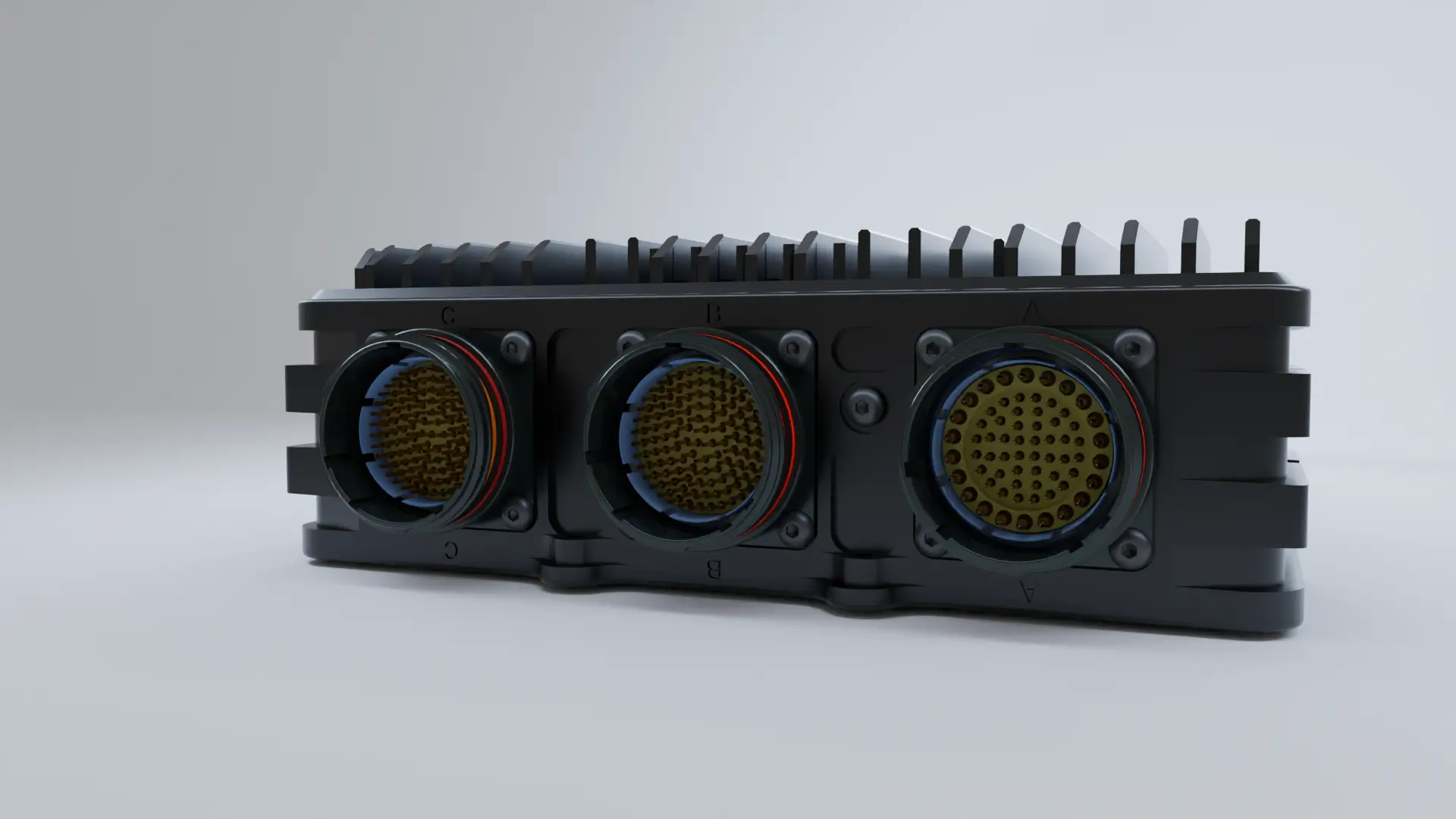

Connection definition

Integral, sealed, motorsport connectors:

• Connector A 66-way
• Connector B 114-way
• Connector C 114-way

Environmental

• Splash resistant to standard motorsport fluids
• Lids sealed with o-rings
• Maximum humidity 100%
• Minimum operating temperature 0°C
• Internal temperature not to exceed 70°C as measured by internal diagnostic sensors
• Adequate forced-air cooling must be applied to ensure the internal operating temperature remains within specified limits
• Storage temperature -25°C to +85°C
• Vibration 100 to 1000Hz, all axes, 24 hours
• Vibration isolation is recommended

Electro-magnetic compatibility

Complies with the essential protection requirements of 89/336/EEC

Service

Recommended service interval 12 months

Sensor inputs

• Up to 66 general-purpose 0 to 5V analogue inputs (12-bit, 10ksps, four of which are software configurable as general-purpose TTL outputs)
• 16 general-purpose configurable 0 to 5V or Pt1000 analogue inputs (12-bit, 10ksps)
• Eight general-purpose configurable 0 to 5V analogue inputs with optional strong pull-ups for use with digital switches (12-bit, 10ksps)
• Four high-speed 0 to 5V analogue inputs (12-bit, 100ksps)
• “Pits pedal” and “Ethernet IP address” analogue inputs (12-bit, 1ksps)
• Three inductive or DHE speed inputs (factory configured)
• Eight DHE speed inputs
• Two K-type thermocouple inputs (12-bit)
• Two wide-band lambda interfaces (12-bit)
• Lap trigger interface
• Ignition switch input

Outputs

• 10 ±12mA servo valve drive stages (10ksps)
• 10 3A low-side drive stages (software configurable for freewheel or fast-turn-off operation)
• 10 1A high-side drive stages
• One 3A high-side drive stage
• Eight 7A high-side drive stages
• Eight TTL injection control outputs
• Up to four general-purpose TTL outputs (all of which are software configurable as analogue inputs)
• Eight open-drain ignition control outputs
• Eight general purpose open-drain outputs
• Two RS422 differential outputs for 1ms time synchronisation and engine synchronisation signals
• Two oscilloscope outputs
• Four 150mA 12V sensor supplies
• One 150mA 10V sensor supply for digital-output sensors
• One 150mA 5V supply for lap trigger receiver
• Eight 100mA 5V precision sensor supplies

Communications

• One Wired Gigabit Ethernet interface
• One RS232 interface (1Mbps maximum)
• One ARCNET interface (10Mbps maximum)
• One dual-channel FlexRay interface (20Mbps)
• 11 CAN interfaces (1Mbps maximum)
