EV charging dispenser

< Back

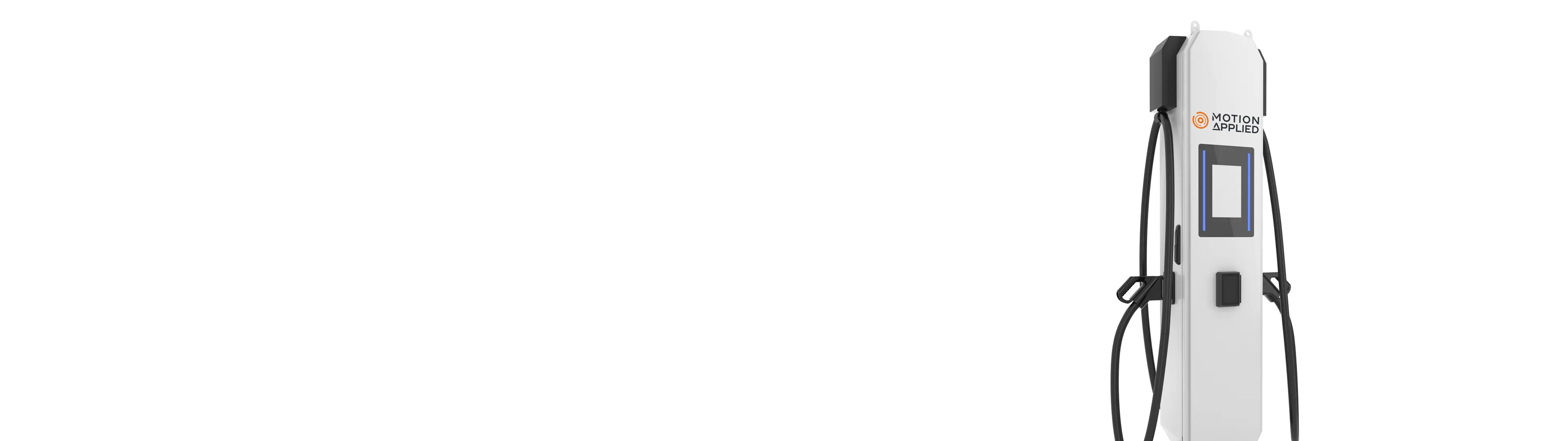

HCD-500

Motion Applied's HCD-500 is a distributed system, high-speed charging dispenser developed in close collaboration with Motion Applied's strategic partners.It is intended to be used with Motion Applied's DPU-600 Electric Vehicle Charger Power Unit.

Motion Applied's electric vehicle charging architecture harnesses Motion Applied's decade long involvement in the development of high-performance batteries and power electronics.

The complete charging solution provides ultra-rapid, dynamic EV charging with high levels of reliability, low noise, high efficiency, and long life.

Documents

HCD-500 product summary

General specifications

Application EnvironmentIndoor/ Outdoor
Operating Temperature Range-35 °C to +50 °C
Storage Temperature Range-40 °C to +75 °C
Relative Humidity5% to 95%
Dimensions (W x D x H)463 x 299 x 1698 mm
Installation ModeFloor-mounted
IP RatingIP54
Impact Protection LevelIK10

Power input and output

Charge Power (configurable)60 to 500 kW
In/ Out Voltage200 to 1000 Vdc
In/ Out Current400 A continuous
500 A maximum
Cable Length> 4m
Connector2
Cable Management SystemAvailable
Vehicle ConnectionIEC 62196 CCS 2

User interface and communication

Connection ProtocolTCP/ IP
Communication ProtocolOCPP 1.6 & 2.0.1
CommunicationWi-Fi/ Ethernet/ LTE
Display10.1” touchscreen
IK10 anti-reflective
Charger Status InformationRGB LED, Mobile Application, Display
RFID Card ReaderMifare (ISO-14443-A)
Standard Language SupportEnglish

Protection

Isolation Monitoring DeviceIMD
Overcurrent/Circuit Protection2 x 315 A Fuse
Over-temperature ProtectionConfigurable 60°C to 80°C

Management specification

Software UpdateAutomatic remote update
Dynamic Load BalancingActive load balancing
Central ManagementOCPP compatible station control and management system

Compliance

EN 61851-1 2019, IEC 62955 2018, IEC 61008-1 2010, IEC/EN 62196-1, IEC 62368-1, IEC 61439-1, ISO 14443-A
