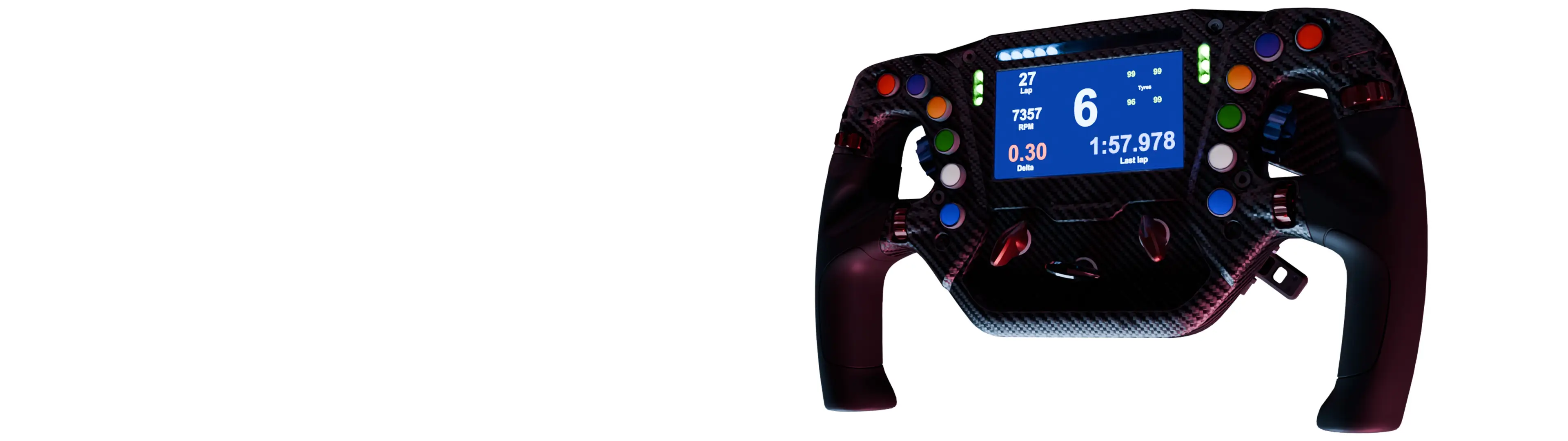

Steering Wheel

Key features

• Compatible with various Quick Releases
• Data Display and warning lamps
• Brightness adjustable via CAN message for low-light conditions
• Option for Backlit buttons and rotaries
• Fifteen RGB high intensity LEDs for a range of user-configurable colours
• Two sets of 3 side RGB high intensity LEDs with current monitoring
• Sixteen gauge types for displaying data, include bar tacho, rev lights and variable text
• Alarm pages or user-configurable text warnings can be triggered by CAN messages
• Twelve metal dome buttons on front face
• Six button inputs on rear face, 2 for the switch modifiers, 2 for the gearshift paddles and 2 for gearshift redundancy
• Three 14-position rotary switches on front face
• Six 12-position thumb wheel rotary switches
• Two analogue rotary position sensors in the pivot for the clutch/regen paddles
• Universal paddle mounts to allow teams to customise the lower paddle grips as necessary to suit driver
• Push/pull design of gear shift paddle allows the driver to change gear either up or down with a single finger depending on which hand is on the wheel
• Amplified strain gauge input available for steering wheel torque measurement
• Diagnostic measurements of internal temperature and supply voltages

Communications

• One CAN interface configurable as CAN-FD (4Mbps maximum) or CAN 2.0 (1Mbps) with no internal termination.
• One USB interface for configuration only.

Inputs

• Two individual device reset inputs.

Electrical

• Supply voltage 8V to 16V.
• Transient voltage and reverse-polarity protection.

Mechanical

• Carbon fibre body material with rubber grips.
• Weight approximately 1.2kg without quick release.

Connection definition

Compatible with various connectors located within the quick release.

Environmental and cooling

• IP rated
• Operating temperature 0°C to +70°C
• Storage Temperature -10°C to +85°C
