HSL-500

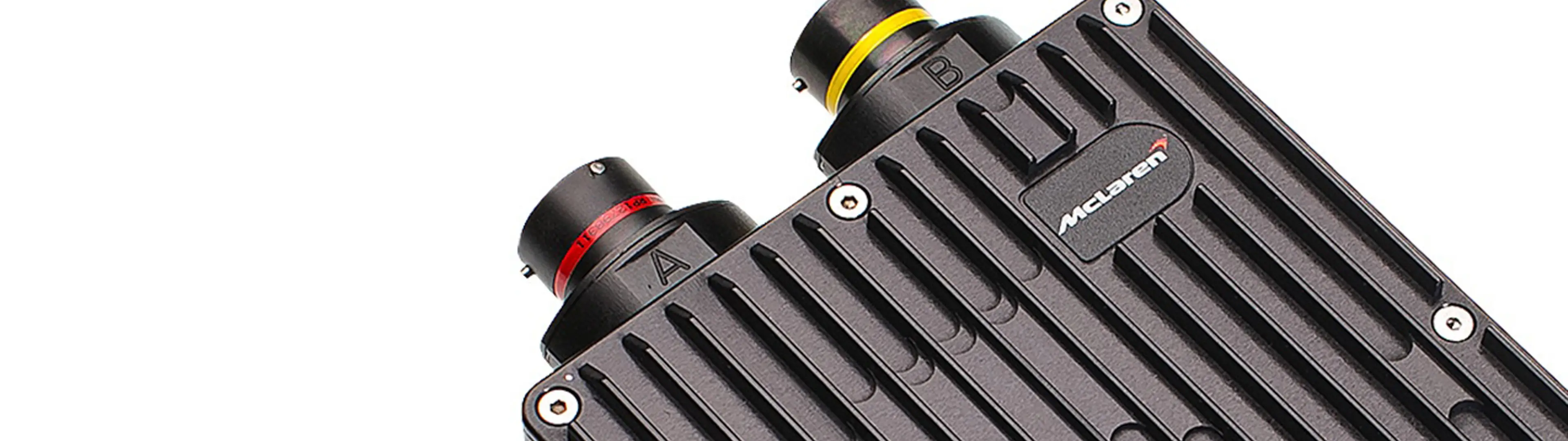

The HSL-500 is a compact, self-contained data logger for applications in top-level motorsport. It includes many innovative features including advanced hardware acceleration of front-end signal processing functions including filtering and down-sampling.
Documents
The unit can acquire data from on-board interfaces at rates of up to 400 kilosamples per second, and from remote units via communications links. A high-performance on-board PowerPC microprocessor offering over 1000MIPS processing power hosts customer applications for real-time data analysis. Application code may be autocoded using our Graphical Development Environment (GDE) from Matlab/Simulink control modules. Data is logged to 2GB on-board Flash memory and downloaded for analysis via a Gigabit Ethernet network connection.
For example system configurations please refer to our Units and Datalogging application notes.
Application
- General purpose data logging
- Real time telemetry transmission via ARCNET connection to MES telemetry system
Electrical
- Supply voltage 8V to 16V DC with reverse polarity and transient over-voltage protection
- 2GB Flash memory for logging
- Hardware acceleration of front-end signal processing functions including filtering and down-sampling
- Customer application processing power >1000MIPS
Electro magnetic compatibility
- Complies with the essential protection requirements of 89/336/EEC
Other features
- ATLASLite and System Monitor configuration software licences supplied with each unit
Connection definition
- Two 64-way Deutsch AS Double Density connectors
Mechanical
- Case material aluminium alloy, hard-anodised black
- Weight 625g
Environmental
- Splash resistant to standard motorsport fluids
- Lids sealed with o-rings
- Maximum humidity 100%
- Minimum operating temperature 0°C
- Maximum operating temperature 70°C
- Storage Temperature -10°C to 85°C
- Vibration isolation is recommended
Sensor inputs
- 12 analogue inputs supporting sampling rates ≤400 kilosamples per second, 0-5V
- 36 analogue inputs supporting sampling rates ≤100 kilosamples per second, 0-5V (Eight can be hardware configured to Pt1000 inputs)
- One Lap trigger input
- Eight DHE speed inputs
- Timing synchronisation input/output
- Ignition switch input
- "Force Boot" analogue input, 1ksps, 0-5V
- “IP Address Select” analogue input, 1ksps, 0-5V
Outputs
- Three sensor supplies at 5V, 100mA (one shared between both connectors)
- Five sensor supplies at 12V, 200mA
- One DHE sensor supply at 12V, 200mA
- One lap trigger supply at 5V, 200mA
Communications
- One Gigabit Ethernet link (10/100/1000Mbps)
- One RS232 link (up to 1Mbps)
- One ARCNET link (10Mbps)
- Six CAN links (1Mbps) (One CAN can be replaced by 2nd FlexRay as a build option)
Ordercodes
- O 030 095 012 000
- HSL-500 High Speed Logger (2GB memory, six CAN)
