K-Type

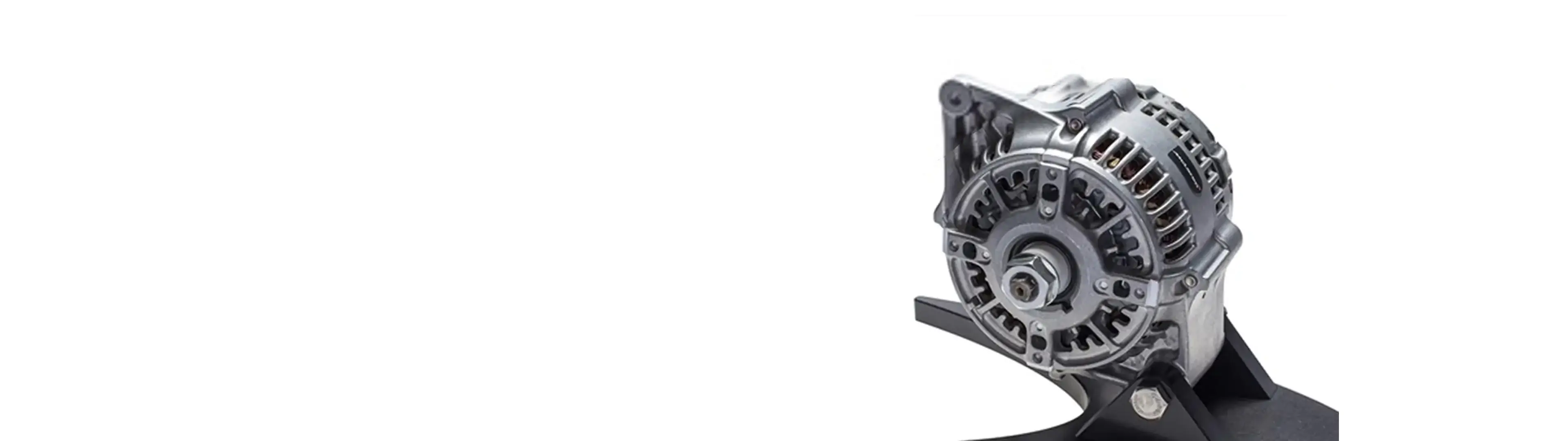

The K-type alternator has a specially wound stator to achieve high power output in a small, low weight package. High current diodes are used in the rectifier and internal fans provide forced air cooling. The output is controlled by a regulator inside the alternator. The units are assembled with stiff brush springs and extra flexible wire to connect the stator to the rectifier. The stator is pegged to the body and all screws are locked. High quality bearings are used to enable the alternators to run at high speeds (up to 18,000 rpm). The standard mounting method is intended for a belt drive, but the alternator may also be driven directly, if required.
Electrical
- Output voltage 13.5V DC
- Nominal output current
| High | 200 Amp | Cut in speed 2500rpm |
| Medium | 165 Amp | Cut in speed 2000rpm |
| Low | 110 Amp | Cut in speed 1300rpm |
A detailed performance chart is shown on the next pageIgnition quiescent current 300mA*
Communication interface
Optional CAN communication interface
- Voltage set point configuration
- On/Off control
- Diagnostic information, including:
- Regulator and rectifier temperatures
- Output voltage measurement
- Over-current warning
- RPM measurement
Mechanical
- Aluminium alloy body
- Maximum speed 18000rpm
- Clockwise or anti clockwise rotation available
- Weight <4.9kg
- Potted elastomer boot for strain relief of cable
Design and manufacture is in-house, so if our existing designs do not suit your application, we can provide cost effective customised parts to suit even the most demanding application.
For example:
- Through bored mounting holes
- High accuracy machining of mounting flanges
- Alternative cable entry locations
- Alternative connectors
- The regulator/rectifier unit may be rotated through 90°, 180° or 270°
Hard-wire back-up of the regulator is also available if requested.
Please contact our technical consultancy service who will be pleased to help
* If alternator is continuously connected to the battery this quiescent current draw may drain the battery
Connection definition
- 22AWG cable (where fitted)
- Cable length is shown on the order details but any length is available on request
- Various automotive and military standard connectors are available
- Positive power output M8 stud (B+ terminal)
- Ground connection for power and regulator is through the case. Ensure that the case has a high current, low resistance connection to vehicle ground.
Cable Connection
| Green wire | Pin A | Pin 1 | Ignition |
| Red wire | Pin B | Pin 2 | Sense |
| White wire | Pin C | Pin 3 | Lamp |
Single connection - The Ignition and Sense connections for the single connection alternators are through the power output stud (B+ terminal)
Environmental
- Splash resistant to standard motorsport fluids
- Viton jacketed cable
- Continuous ambient operating temperature -30 to +90°C
- Maximum ambient temperature 110°C short term, providing the following temperatures are not exceeded:
| Stator | 200°C |
| Diodes | 175°C |
| Regulator | 115°C |
| Bearings | 150°C |
Power curve
| Output in Amps | |||||||
| Nominal Current Rating | Standard 110A | Medium 165A | High 200A | ||||
| Cut in Speed | 1300rpm | 2000rpm | 2500rpm | ||||
| Ambient Temperature | 25°C (@13.5V) | 90°C (@12.5V) | 25°C (@13.5V) | 90°C (@12.5V) | 25°C (@13.5V) | 90°C (@12.5V | |
| Speed (rpm) | 2500 | 60 | 50 | 20 | 27 | 0 | 0 |
| 3000 | 80 | 70 | 50 | 55 | 45 | 50 | |
| 5000 | 100 | 90 | 125 | 123 | 135 | 125 | |
| 7500 | 110 | 90 | 148 | 140 | 175 | 155 | |
| 10000 | 120 | 90 | 165 | 147 | 200 | 180 | |
| 12500 | 120 | 90 | 178 | 157 | 220 | 190 | |
| 15000 | 120 | 90 | 190 | 170 | 235 | 200 | |
Ordercodes
- O 030 650 013 000
- 165 Amp Clockwise Rotation
- O 030 650 003 056
- 200 Amp Clockwise Rotation200 Amp Clockwise Rotation
- O 030 650 013 019
- 165 Amp Anti-clockwise Rotation
- O 030 650 013 004
- 200 Amp Anti-clockwise Rotation
- O 030 650 013 139
- 140 Amp Clockwise Rotation
- O 030 650 035 001
- 200 Amp Smart Alternator K Type (non-boosted)
