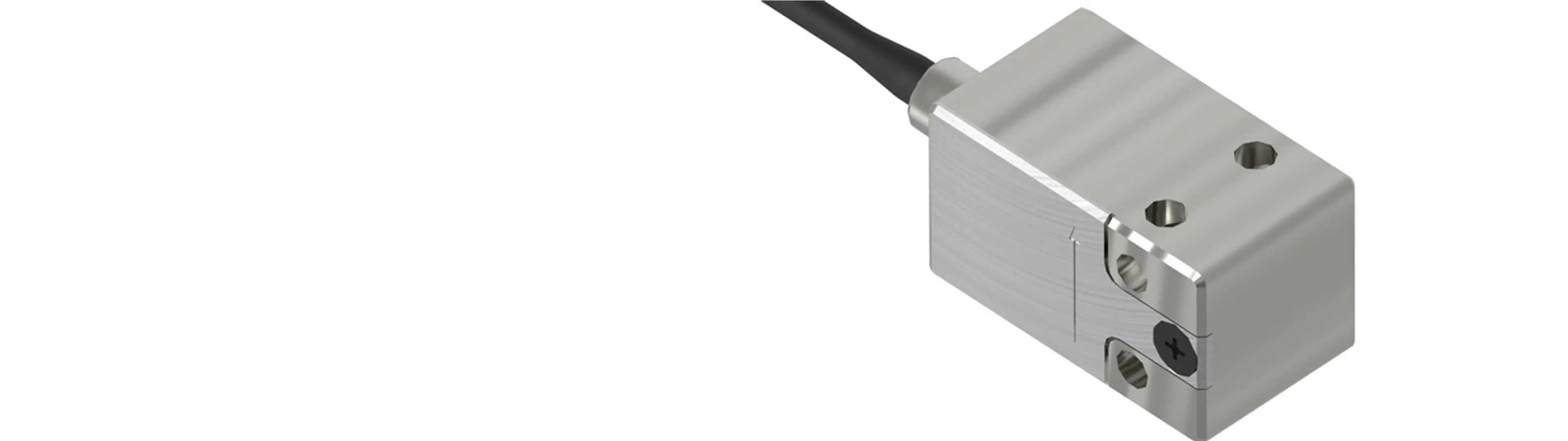

Accelerometer - 1 Axis

< Back

1 Axis

The sensing element is a MEMs device based on the principle of differential capacitance technology. The single axis part is particularly small and suitable for wheel hub acceleration measurement.

Documents

Application notes

The unit is based on micro machined MEMS technology. The unit contains a ±35g sensing element. The element is scaled to optimise the resolution to suit the g range of interest. An internal amplifier provides an output between 0 and 5 volts. The on board microcontroller and temperature sensor are used for offset drift compensation. This unit can be re-calibrated at the factory.

For higher g applications a ±50g sensing element can be fitted and scaled to optimise the resolution.

Electrical

  • Supply Voltage 8 to 16V unregulated
  • Range ±20g
  • Output voltage at 25°C
  • 0.5 ±0.10VFull scale negative
    2.5 ±0.05V0g
    4.5 ±0.10VFull scale positive
      • Sensitivity 100mV/g ± 2.5% max at 25°C
      • Cross axis sensitivity ±3.5%
      • Thermal sensitivity drift

  • +0.003 to +0.006%/°C over -20°C to 25°C

    -0.007 to -0.017%/°C over 25°C to +105°C

    -0.004 to -0.025%/°C over 105°C to +125°C

      • Zero g drift ±0.2g max over operating temperature range
      • Frequency response

    • -3dB at 60±5Hz, 2 pole filter

      • Output impedance 50Ω
      • Current Consumption <10mA

Cable and Connection Definition

  • 24AWG un-screened cable
  • Cable length 1000mm
  • Connection
  • Red wire
    		Supply
    Green wire
    		Ground
    White wire
    		Signal

Mechanical

  • Weight less than 65g (including cable)
  • Polyester cable boss for strain relief to the sensor body
  • Over range 500g (any axis powered for 0.5ms)

Environmental

  • 6AL4V Titanium body and lid
  • Resistant to standard motorsport fluids
  • Maximum humidity 100%
  • Operating temperature 0 to +125°C
  • Viton jacketed cable

Ordercodes

O 030 345 006 015
