Accelerometer - 3 Axis

< Back

3 Axis

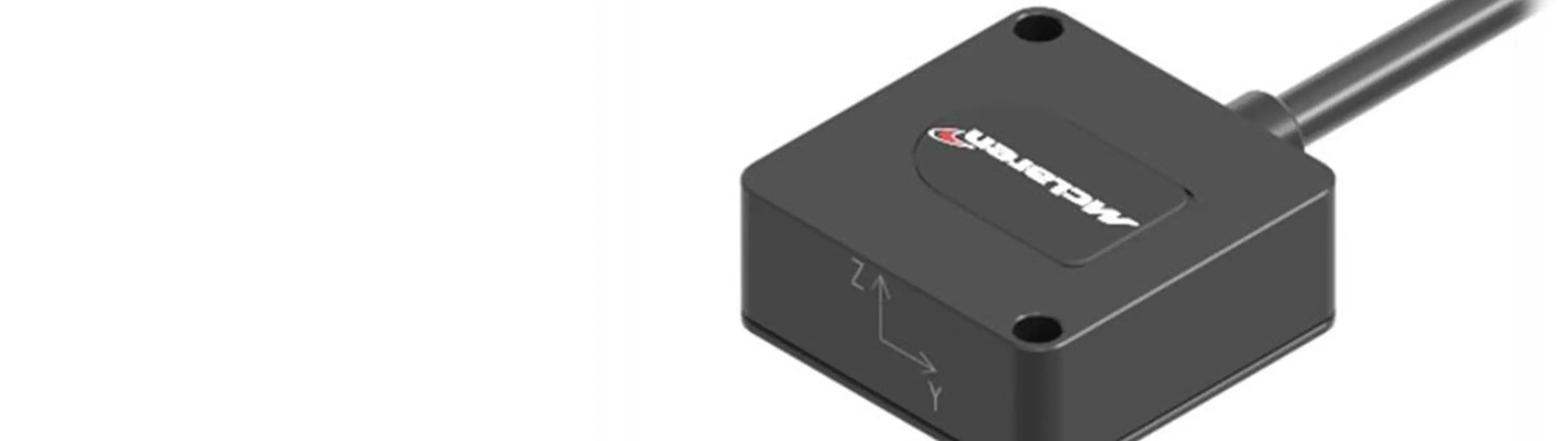

A precision, thermally compensated 3 Axis Accelerometer designed specifically for harsh Motorsport environments and housed in a rugged hard anodised aluminium body.

Documents

Product documentation
Application notes

3 Axis Analogue & CAN

A precision, thermally compensated 3 Axis Accelerometer designed specifically for harsh Motorsport environments and housed in a rugged hard anodised aluminium body. The Accelerometer is available in 3 configurations, CAN Bus only, Analogue only and CAN Bus and Analogue output.

A precision, thermally compensated 3 Axis Accelerometer designed specifically for harsh Motorsport environments and housed in a rugged hard anodised aluminium body. The Accelerometer is available in 3 configurations, CAN Bus only, Analogue only and CAN Bus and Analogue output.

CAN Bus Output

  • User configurable g Range up to ±40g per axis
  • User configurable -3dB filter up to 350Hz per axis

Analogue Output

  • Available ranges from ±10 to ±40g per axis
  • Factory configurable -3dB filter per axis

CAN Bus and Analogue Output

  • User configurable g Range up to ±40g per axis
  • User configurable -3dB filter up to 350Hz per axis Analogue signals

Bespoke versions are available please contact our Sales team with your requirements.

Electrical

Supply voltage8-16VDC
Supply CurrentVoltage Output: 30mA max. CAN Output: 60mA max

Cable and Connection Definition

CAN BUS Output

Analogue and CAN BUS Ouput

26AWG, Viton, Unscreened. 1000mm

Analogue Output

ConnectionWire Colour
Power +Red
GroundGreen
X Axis SignalWhite
Y Axis SignalYellow
Z Axis SignalBlue

CAN BUS Output

Analogue and CAN BUS Ouput

Mechanical

  • Aluminium body, hard anodised and dyed black.
  • Polyester cable boss for strain relief to the sensor body.
  • Shock: 50g, any axis

Environmental

  • Maximum Humidity: 100%
  • Ambient Operating Temp: -40°C to 125°C
  • Resistant to standard motorsport fluids

Ordercodes

O 030 345 007 048
CAN Bus ±40g range
O 030 345 007 049
Analogue ±10g (60Hz filter on all axes)
O 030 345 007 050
Analogue ±20g (60Hz filter on all axes)
O 030 345 007 051
Analogue ±40g (60Hz filter on all axes)
O 030 345 007 052
Analogue ±20g (250Hz filter on all axes)
O 030 345 007 054
Analogue ±20g (100Hz filter on all axes)
O 030 345 007 055
CAN Bus & Analogue
O 030 345 007 059
Analogue ±10g (60Hz on Z, 100Hz on X & Y)
