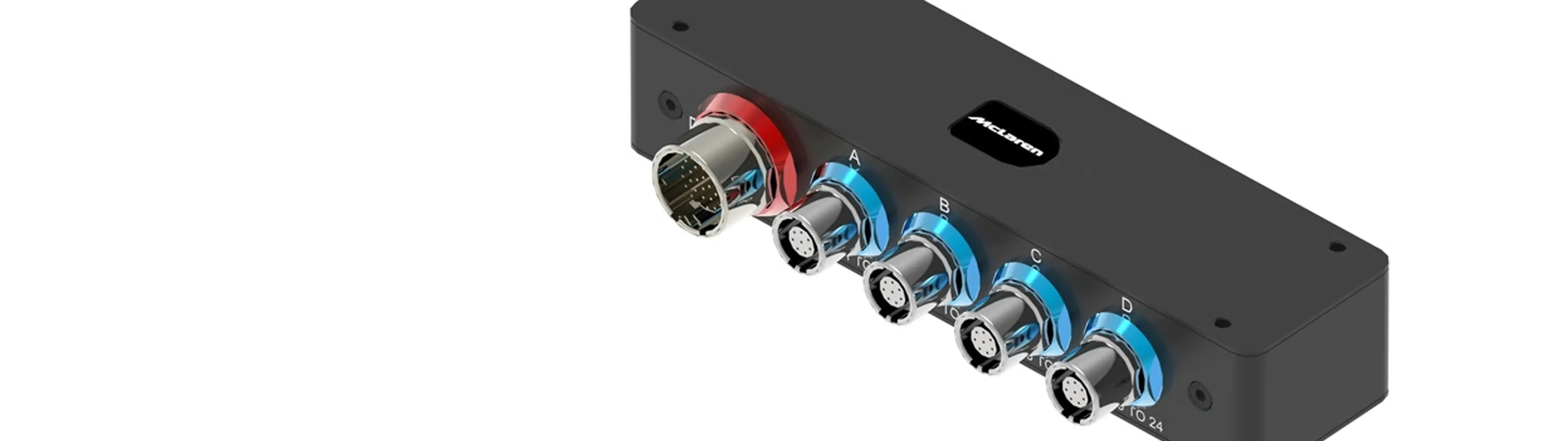

AIU-24
The AIU is to be used with IEPE (Integrated Electronics Piezo-Electric) accelerometers.
Documents
The AIU is to be used with IEPE (Integrated Electronics Piezo-Electric) accelerometers and strain gauges. The unit provides a stabilised supply for excitation. The voltage output from the IEPE is attenuated and buffered by the AIU at fix gain of 0.4 to convert the 10V full scale measurement from an IEPE device to an output in the range of 0.5 to 4.5V
Electrical
- Supply voltage 8 to 16 V DC
- Reverse polarity protection
- Supply current 315mA @12V typ
- Excitation Voltage 24±0.2V
- Excitation Current 4±0.1mA per channel
- Output voltage per channel
0.5V ± 0.025V Full scale positive
2.5V ± 0.025V 0g
4.5V ± 0.025V Full scale negative
The above tolerance does not include the sensitivity tolerance and sensitivity drift of the IEPE accelerometer
- AC coupled
- Filter Characteristics
High pass Filter: -3dB at 11Hz
Low Pass Filter: -3dB at 5.2kHz
- Output Impedance 100?
- Fixed gain
Ordercodes
- O 030 345 008 006
- AIU-24
